Listed specification
The figures below are reproduced from the manufacturer's published listings for model KK 08E; two listings for this model carry the same core specification table.
| Field | Listed value |
|---|---|
| Model NO. | KK 08E |
| Motor power | 5000 W |
| Battery | 150 Ah |
| Battery voltage | 48 V |
| Controller | E-Controller 48 V 400 A |
| Dimension (L x W x H) | 3950 x 1345 x 2050 mm |
| Wheelbase | 1670 mm |
| Minimum ground clearance | 200–250 mm |
| Tire size | 23 x 10.5-14 |
| Maximum speed | 40 km/h (specification table; listings also show a 30–50 km/h range) |
| Charge time | 9 h or more |
| Grade ability | 25 degrees or more |
| Driving mileage | 90 km or more |
| Brake system | Front disc + rear drum |
| Certification (product listing) | CE |
| Listed price band | US$8,300.00–8,800.00 / piece |
| Minimum order (product listing) | 1 piece |
About this model

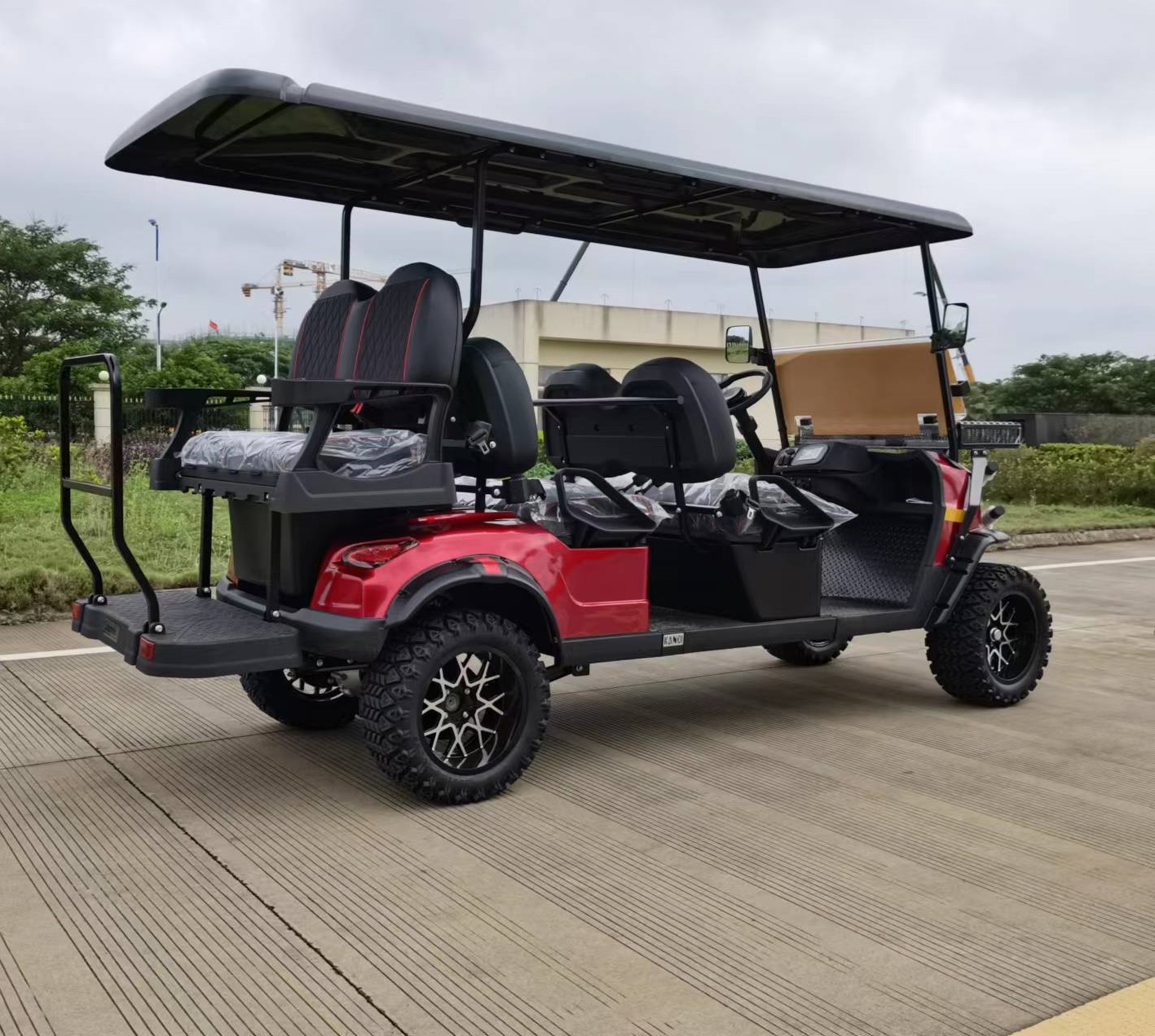

The KK 08E is listed as a multi-passenger electric golf cart. Its listed running gear is built around a 5000 W motor and a 48 V / 400 A controller, with a 150 Ah battery credited in the listing with at least 90 km of driving mileage and a charge time of nine hours or more. Front disc and rear drum brakes, a 1670 mm wheelbase and 23 x 10.5-14 tires complete the published picture. The rest of the family — from 2-seaters to the 8-seater — is listed on the electric golf carts page.
Fields to confirm in your quotation
Two published listings for the KK 08E do not agree on three fields, so we do not print a single figure for them: the seating configuration (one listing's basic information gives 5–6 seats, the other gives 7–8), the curb weight (listed as 500 kg or more in basic information and 770 kg as complete vehicle weight in one specification table), and the port of loading (one listing's origin line reads 'hainan port', the other's reads 'nignbo port' — both spellings reproduced exactly as published). Ask for seating, weight and loading port to be confirmed in the quotation.
Minimum order also has two published layers: this model's listing states 1 piece, while our product pages' general FAQ states a range of 5–15 pieces per model. The confirmed minimum for your order is the figure in your quotation. Production time in the same FAQ is 35–45 days, with payment by T/T, L/C or Western Union.
Ordering
Send the quantity, destination market and the seating configuration you need through the contact page, referencing model KK 08E.
Specifying this model in an enquiry
An enquiry for this model settles the open fields fastest when it states the buyer's use case. For guest shuttling (resorts, hotels, sightseeing), name the seating configuration you need first, because the two listings disagree on it; ask for the configuration, the documentation for your market and the delivery schedule against the 35–45 day production frame to be confirmed in the quotation. For campus and facility duty, start from the battery and range figures — the listed 150 Ah at 48 V with at least 90 km of driving mileage is the number to check your duty cycle against. For importers and dealers, the model can anchor a wider golf cart order alongside the 2-seat and 4-seat listings from the same family; name the mix in one enquiry. In all three cases the fields this page deliberately leaves open — seating, curb weight, loading port and the confirmed minimum — should be settled in writing in the quotation before production; ask for them there, which is the point of presenting them honestly here rather than printing one listing's version as fact.
For the wider range, see 6 & 8-seater golf carts and the golf cart manufacturer page.
